Ceramic bottom gating systems
for steelworks

We manufacture a complete range of refractory shapes
for ceramic gating systems assembly.

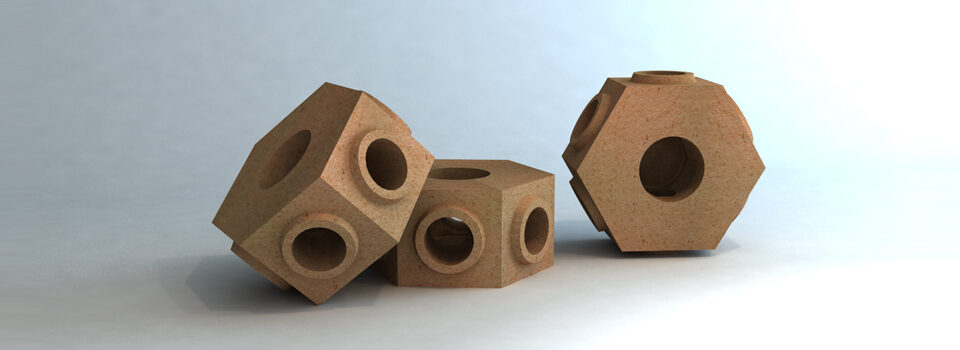

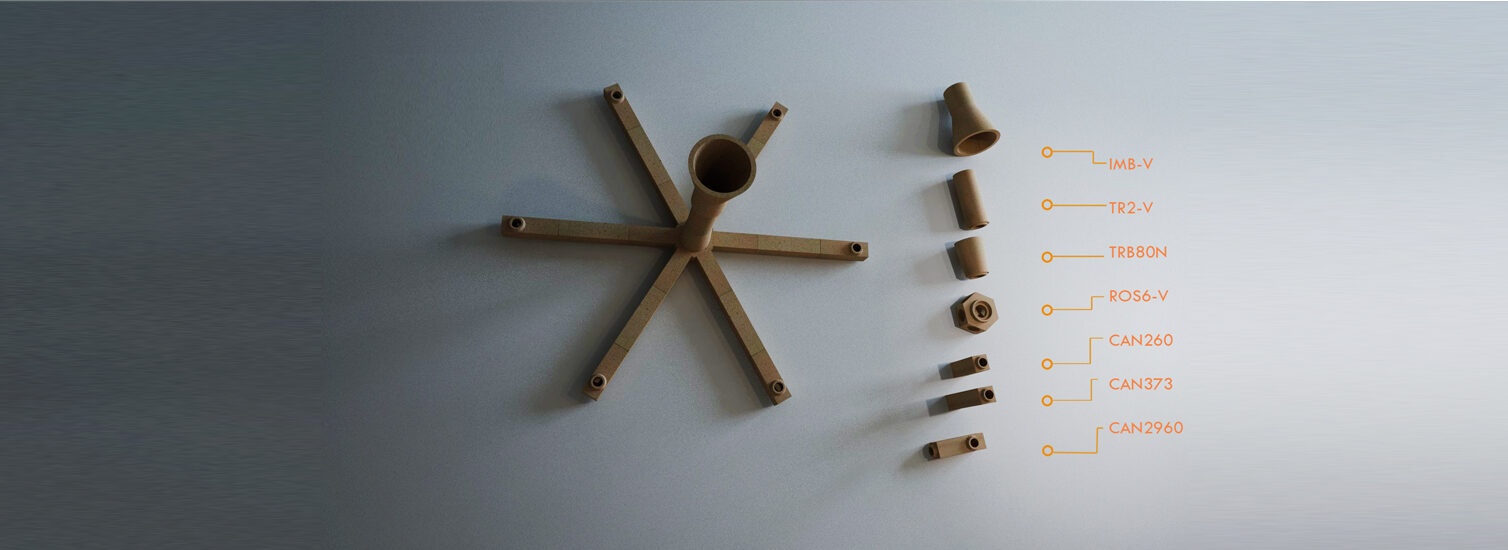

Kingbricks

We offer different types of kingbricks with one or more outlets. In variety of sizes with different diameters and quality.

Ceramic bottom gating systems
for steelworks

We manufacture a complete range of shapes
for ceramic gating systems assembly.

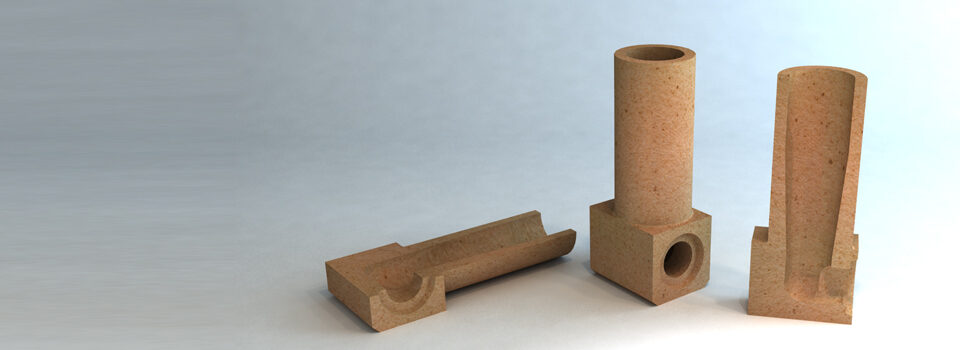

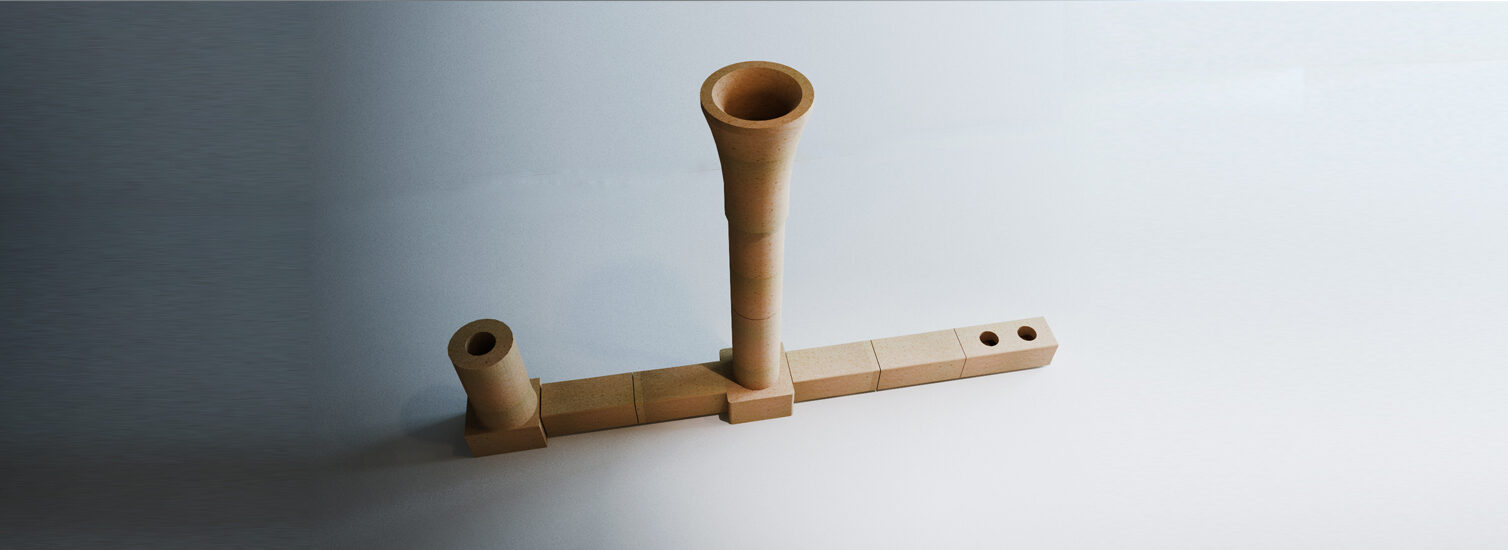

Through channels

We produce through channels with different sizes, diametres and quality.

Ceramic bottom gating systems
for steelworks

End channels

We produce end channels with different sizes, diametres and quality.

Ceramic bottom gating systems
for steelworks

We manufacture a complete range of shapes
for ceramic gating systems assembly.

PRODUCTS AND SERVICES for steelworks

We manufacture a complete range of refractory shapes for gating systems assembly in steel mills, standardized refractory bricks and other accessories – refractory masses, dusting powders for slide gate ladles, insulating backfilling.

We offer full advice on the matter. For more information please contact our dealers.

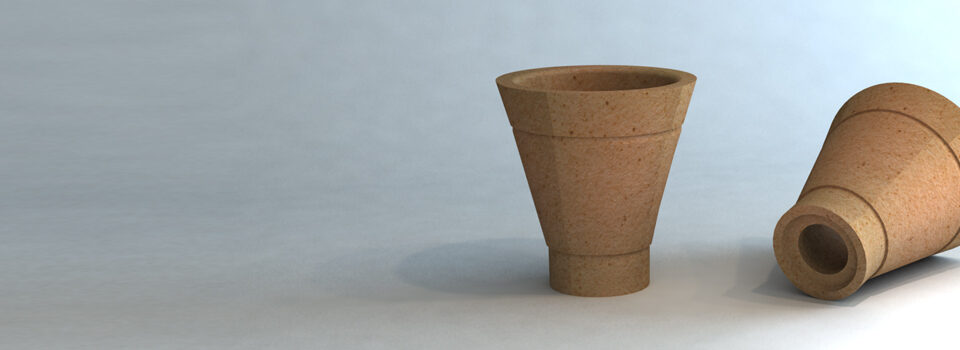

Funnels

Different types of funnels with various diameters, shapes and sizes, with possible banding.

Pipes

Pipes in various diameters and lengths.

Special pipes

Various types of pipes for the centre brick connection.

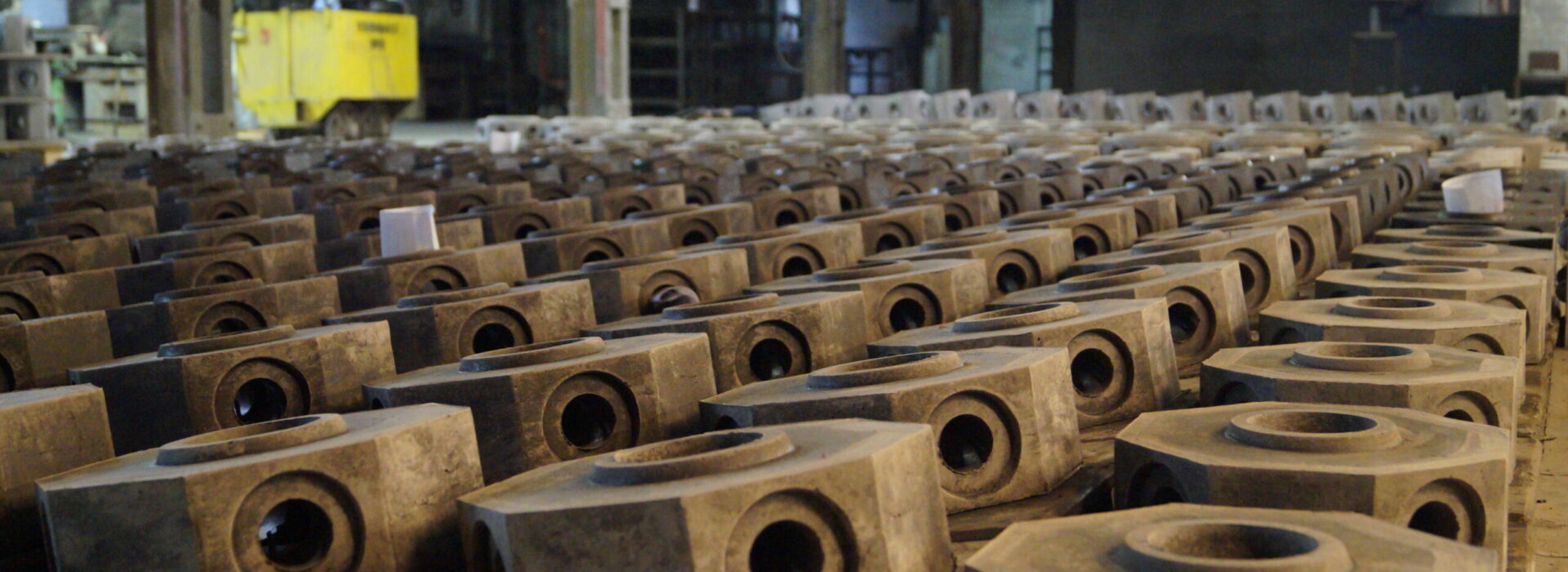

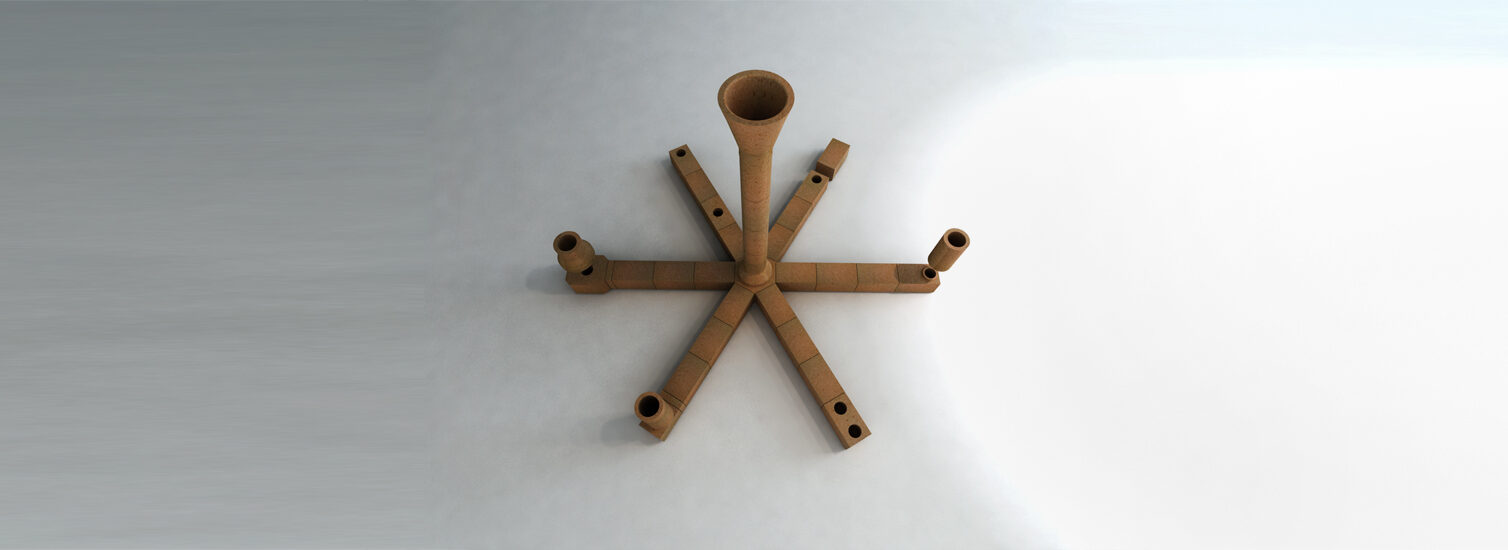

Kingbrick - Center bricks

Manually or mechanically formed kingbricks for dividing the casting stream with one or more outlet openings, in various diameters and sizes.

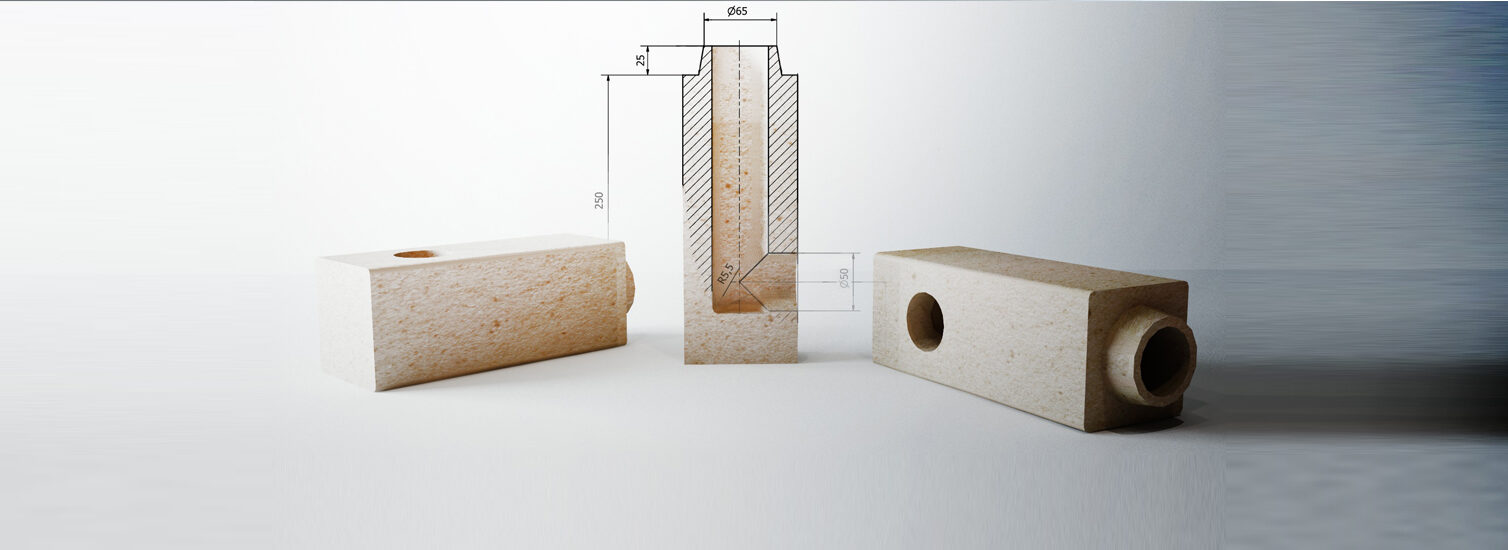

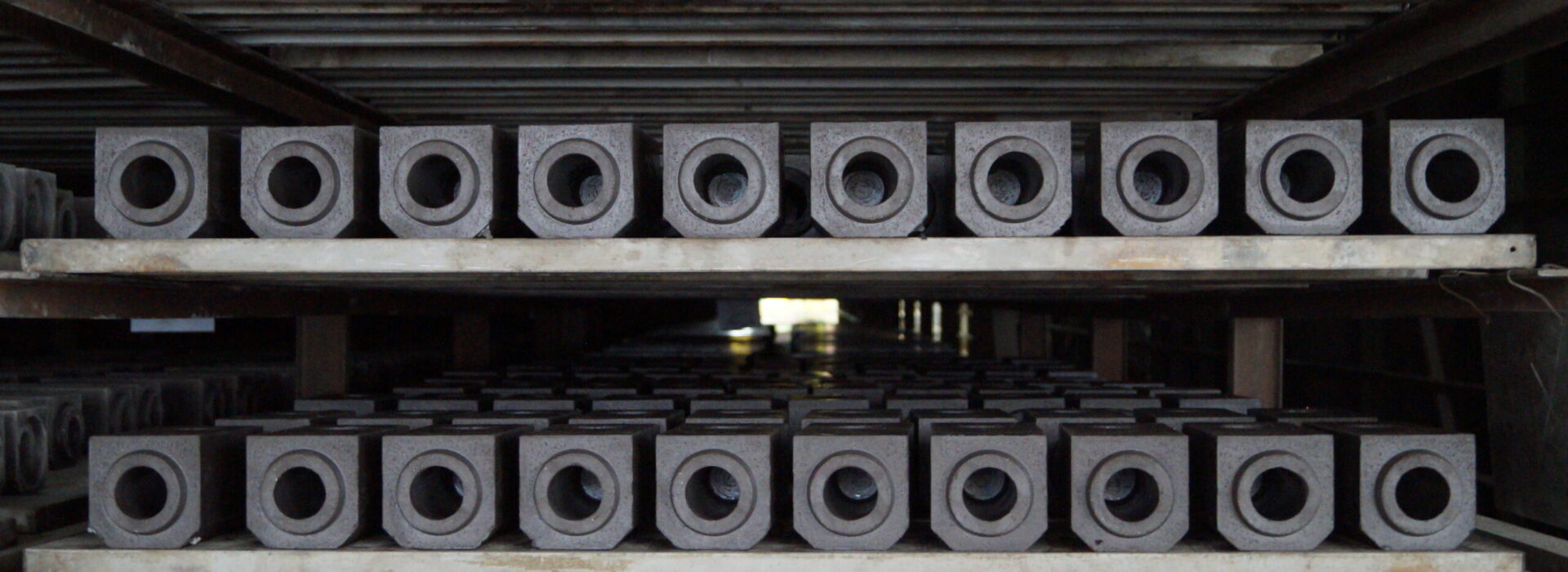

Through channels and end channels

Mechanically pressed “through channels“ in various diameters and lengths. The shape of the channels depends on the casting plate. We make “through channels“, with one or more outlet openings on different sides of the channel. We make wide sortiment of end channels.

"Kokilnik"

For outflow steel casting, you can use our special product called “kokilnik“, formed from a single piece.

Ingot risers

To connect the inlet to the ingot mold, we manufacture several types and various sizes of ingot risers.

Refractory products for ingot teeming. We manufacture a complete range of refractory shapes for bottom ingot teeming – funnels, pipes, centre bricks, through and end channels, etc.

catalog here

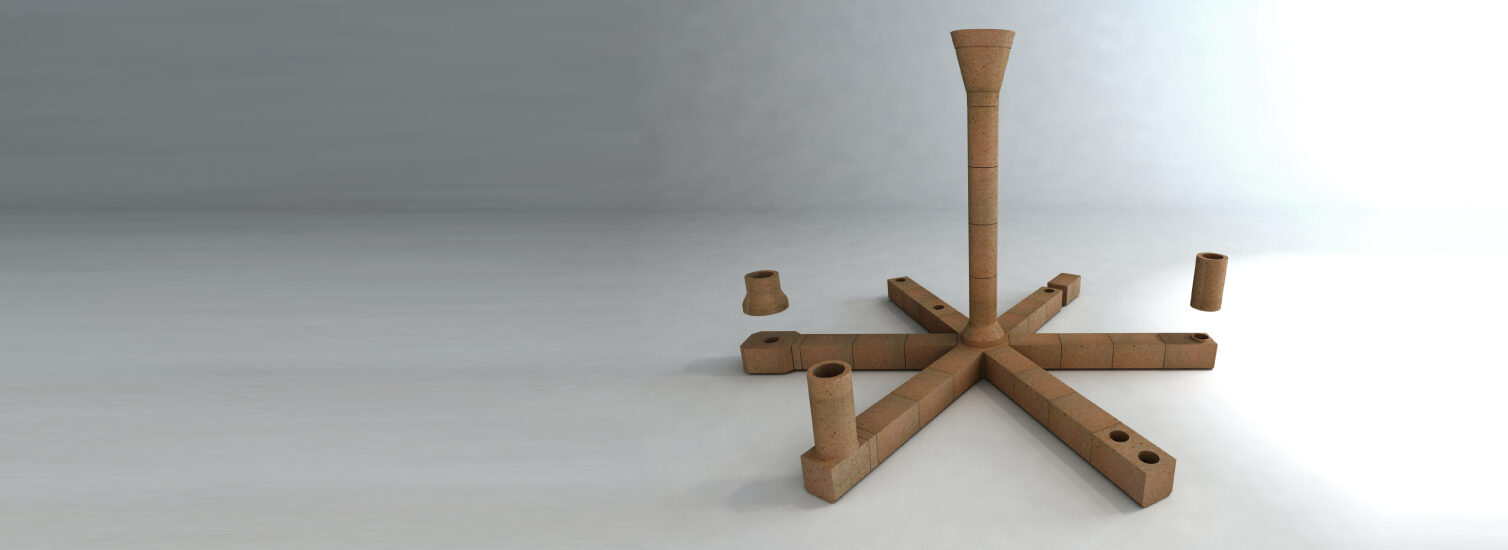

CASTING SETS FOR bottom ingot teeming

Refractory shapes with increased resistance to wear, refractoriness and strength are designed for high quality castings and used mainly as bottom pouring assembly for the ingot gating system.

Is produced a range of gating holloware – funnels, sleeves, centre bricks, runners and other shapes.

There are more grades formed from a clay with the Al2O3 content of 55-88 % based on andaluzite, bauxite, mullite or corundum.

Refractory bricks S45 (fireclay), ML65 (mullite), B70 (bauxite) and MK85CT (corundum):

Parameters
S45
ML65
B70
MK85CT
Al2O3
45 %
65 %
70 %
85 %
Fe2O3
2,2 %
2 %
2 %
0,5 %
Refractoriness
1 720 °C
1 800 °C
1 790 °C
1 790 °C

Funnel

Different types of funnels with various diameters,

shapes and sizes, with possible banding.

Ingot mouthpiece

To connect the inlet to the ingot mold,

we manufacture several types

and various sizes of ingot mouthpieces.

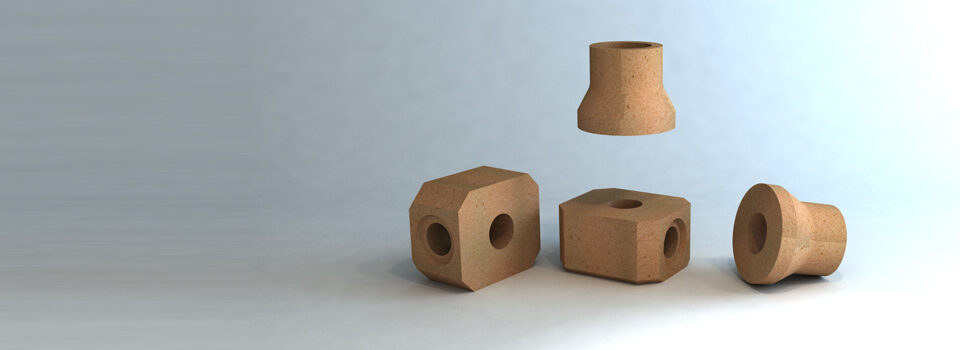

Centre bricks

Manually or mechanically

formed centre bricks.

Kokilník

Our special product.

Special pipes

Various types of pipes

for the connection of centre bricks.

Robotic workstation

More

Robotic workstation

SEEIF Ceramic, a.s. introduced a robotic workstation in the production plant 3 Keravit. This facility uses latest technologies to improve the quality of molded products. Robotic workstation operates in a automatic mode and monitors the output pressure and the weight of our products. We use robot Hyundai Hi5. This robot takes bricks and store them directly on the kiln car. If you want, you can watch our video.
